8-channel Switching Mode Power Supply (SMPS)-DS-2FA1205-C8(UK)

Hikvision DS-2FA1205-C8(UK) – 8-Channel Switching Mode Power Supply (SMPS)

The Hikvision DS-2FA1205-C8(UK) is an 8-channel Switching Mode Power Supply (SMPS) designed to provide stable and centralized power for compatible CCTV cameras and security equipment. The Hikvision DS-2FA1205-C8(UK) delivers 12V DC power with a maximum output of 1A per channel and a maximum total current of 5A, making it suitable for multi-camera surveillance installations.

The Hikvision DS-2FA1205-C8(UK) provides a total power capacity of 60W and features eight independent output channels. This allows installers to power multiple CCTV cameras from one centralized unit, reducing cable clutter and eliminating the need for separate power adapters for every camera. The Hikvision DS-2FA1205-C8(UK) is suitable for residential, commercial, office, retail, and professional surveillance systems.

With a wide 150–285V AC input range and a 47–63Hz input frequency, the Hikvision DS-2FA1205-C8(UK) is designed to accommodate a broad range of mains power conditions. This makes the Hikvision DS-2FA1205-C8(UK) a practical choice for CCTV installations requiring a dependable centralized power source.

The Hikvision DS-2FA1205-C8(UK) incorporates over-current, short-circuit, and over-voltage protection, helping protect the power supply and connected surveillance equipment. Its good EMC performance also supports stable operation within CCTV environments.

For longer CCTV cable runs, the Hikvision DS-2FA1205-C8(UK) provides cable-length compensation with selectable output levels of 12V DC in Normal mode, 13.5V DC in Long mode, and 15V DC in Ex-Long mode. This helps compensate for voltage drops that can occur over extended cable distances when the appropriate setting is used.

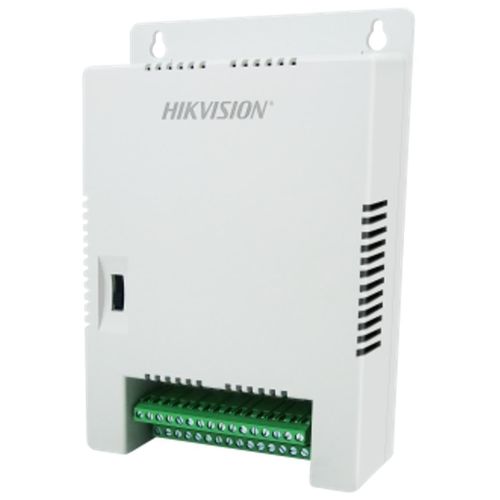

The Hikvision DS-2FA1205-C8(UK) features a compact white enclosure measuring approximately 144 × 109.5 × 33 mm, along with a green LED indicator for operating status. Its compact design makes the Hikvision DS-2FA1205-C8(UK) convenient for centralized CCTV power installations where space is limited.

If you need a reliable centralized power solution for multiple CCTV cameras, the Hikvision DS-2FA1205-C8(UK) offers an effective combination of 8-channel power distribution, 60W capacity, 12V DC output, wide AC input, cable-length compensation, and built-in electrical protection.

Key Specifications

Product Type: 8-Channel Switching Mode Power Supply (SMPS)
Model: DS-2FA1205-C8(UK)
Output Voltage: 12V DC
Output Channels: 8 independent channels
Maximum Output per Channel: 12V DC / 1A
Maximum Total Current: 5A
Total Power Capacity: 60W
Input Voltage: 150–285V AC
Input Frequency: 47–63Hz
Cable Length Compensation: Normal 12V / Long 13.5V / Ex-Long 15V DC
Protection: Over-current / Short-circuit / Over-voltage protection
Ripple & Noise: 150 mVp-p (0.15 Vp-p)
AC Input Connector: C8
DC Output Connector: DC Plug / Grid Terminal
LED Indicator: Green
Operating Temperature: 0°C to 40°C
Operating Humidity: 10%–95%, non-condensing
Housing: White compact enclosure
Dimensions: Approximately 144 × 109.5 × 33 mm
Application: CCTV camera power distribution

Key Features

• 8-channel power distribution provides centralized power for multiple CCTV cameras.

• 12V DC output is suitable for compatible CCTV cameras and security equipment.

• 60W total power capacity supports multiple connected devices within the rated load.

• Up to 1A per channel provides dedicated power output for individual cameras.

• 5A maximum total current supports simultaneous operation of multiple channels within the overall rating.

• 150–285V AC wide input range accommodates a broad range of mains voltage conditions.

• Over-current protection helps protect connected equipment from excessive current.

• Short-circuit protection helps safeguard the power supply during short-circuit conditions.

• Over-voltage protection provides an additional layer of protection for connected CCTV equipment.

• Cable-length compensation helps compensate for voltage drop on longer camera cable runs.

• Normal, Long and Ex-Long modes provide selectable 12V, 13.5V and 15V DC output levels.

• Good EMC performance supports reliable operation in CCTV environments.

• Green LED indicator provides a convenient visual operating-status indication.

• Compact enclosure allows convenient installation in space-constrained locations.

• Centralized power management reduces the need for multiple individual camera power adapters.

• CCTV-focused SMPS design makes it suitable for professional surveillance installations.

Recommended Applications

The Hikvision DS-2FA1205-C8(UK) is suitable for:

• Residential CCTV systems

• Houses and compounds

• Shops and retail stores

• Offices and business premises

• Warehouses and storage facilities

• Schools and educational institutions

• Hotels and commercial buildings

• Multi-camera surveillance systems

• Analog CCTV installations

• Security control rooms

• Professional CCTV installations

• Centralized camera power distribution
